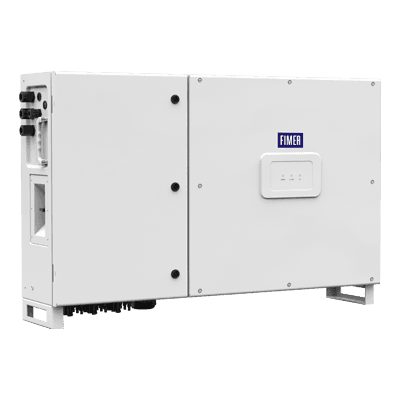

FIMER PVS-50-TL 50kW Three Phase On Grid Inverter - PVS-50-TL-SX2
SKU Code:
FIM-20261022065034-024
Location:Italy
Prices list
1 - 12 pcsUSD 3785.52 /pc
Product Details
Product Details
Efficiency98.4% (Maximum)
IP RangeIP65
MPPT max800 V (at rated AC power)
MPPT min480 V (at rated AC power)
Max Input Current36 A per MPPT
Max Input Voltage1000 V DC
No. of PV strings per MPPT5
No. of independent MPPT inputs3
PhaseThree Phase
Power50 kW
TypeOn Grid (Grid-Tie)
Product Measurements
Product Measurements
Height750 mm
Width1100 mm
Depth257 mm
Weight68 kg
The FIMER PVS-50-TL-SX2 is a 50 kW three-phase grid-connected string inverter designed for large commercial, industrial and decentralized solar installations.
It features three independent MPPT trackers, a maximum DC input voltage of 1000 V and an MPPT operating window of 480–800 V at rated AC power. Maximum inverter efficiency reaches 98.4%.
The inverter provides 15 PV string input pairs, integrated WLAN, Ethernet and RS-485 communication, and compatibility with the Aurora Vision monitoring platform. The SX2 version includes quick-fit input connections with fuses and DC switches.
The IP65-rated enclosure uses forced-air cooling and supports horizontal and vertical mounting. CE marking and IEC/EN 62109 safety standards are listed by the manufacturer.
Total (Tax Excluded)USD 3785.52
Price (per piece):USD 3785.52
Available now:12 pcs
* Please choose address and incoterm for checkout
Lead Time1 Week(s)
