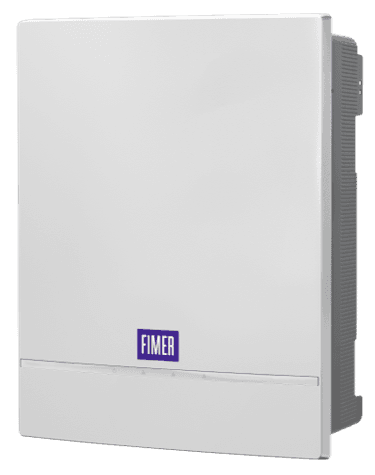

FIMER PVS-33-TL 33kW Three Phase On Grid Inverter - PVS-33-TL-SX
SKU Code:
FIM-20261022065034-395
Location:Italy
Prices list
1 - 25 pcsUSD 2630.82 /pc
Product Details
Product Details
Efficiency98.4% (Maximum)
IP RangeIP65
MPPT max850 V (at rated AC power)
MPPT min460 V (at rated AC power)
Max Input Current2 × 26 A + 2 × 22 A (per MPPT)
Max Input Voltage1100 V DC
No. of PV strings per MPPT2
No. of independent MPPT inputs4
PhaseThree Phase
Power33 kW
TypeOn Grid (Grid-Tie)
Product Measurements
Product Measurements
Height675 mm
Width591.8 mm
Depth227.5 mm
Weight50 kg
The FIMER PVS-33-TL-SX is a 33 kW three-phase on-grid string inverter for commercial and industrial photovoltaic installations.
The inverter incorporates four independent MPPT trackers, an MPPT window of 460–850 V at rated AC power and a maximum DC input voltage of 1100 V. Maximum conversion efficiency is 98.4%.
Its transformerless design supports individual PV string monitoring, integrated export limitation and high-current modules. The SX version also supports optional PID recovery and arc-fault circuit interruption.
The enclosure is IP65 rated and uses forced-air cooling. CE and RCM markings and IEC/EN 62109 safety standards are listed in the manufacturer datasheet.
Total (Tax Excluded)USD 2630.82
Price (per piece):USD 2630.82
Available now:25 pcs
* Please choose address and incoterm for checkout
Lead Time1 Week(s)
