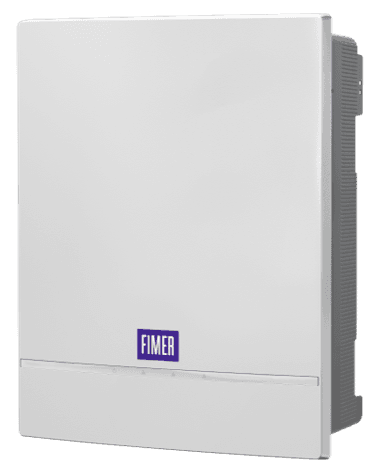

FIMER PVS-30-TL 30kW Three Phase On Grid Inverter - PVS-30-TL-SX
SKU Code:
FIM-20261022065034-273
Location:Italy
Prices list
1 - 18 pcsUSD 2504.27 /pc
Product Details
Product Details
Efficiency98.4% (Maximum)
IP RangeIP65
MPPT max850 V (at rated AC power)
MPPT min460 V (at rated AC power)
Max Input Current2 × 26 A + 2 × 22 A (per MPPT)
Max Input Voltage1100 V DC
No. of PV strings per MPPT2
No. of independent MPPT inputs4
PhaseThree Phase
Power30 kW
TypeOn Grid (Grid-Tie)
Product Measurements
Product Measurements
Height675 mm
Width591.8 mm
Depth227.5 mm
Weight50 kg
The FIMER PVS-30-TL-SX is a 30 kW three-phase grid-connected solar inverter developed for commercial and industrial photovoltaic plants.
It features four independent MPPT trackers, an MPPT voltage range of 460–850 V at rated AC power and a maximum DC input voltage of 1100 V. Maximum efficiency reaches 98.4%.
The inverter supports high-current PV modules, individual string monitoring and integrated export-limitation control. Optional arc-fault detection and PID recovery are available for the SX version.
The IP65-rated enclosure features forced-air cooling, flexible mounting and built-in communication interfaces. The inverter carries CE and RCM markings and lists IEC/EN 62109 safety standards.
Total (Tax Excluded)USD 2504.27
Price (per piece):USD 2504.27
Available now:18 pcs
* Please choose address and incoterm for checkout
Lead Time1 Week(s)
