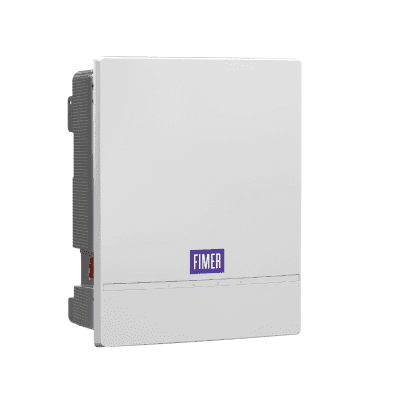

FIMER PVS-20-TL 20kW Three Phase On Grid Inverter - PVS-20-TL-SX
SKU Code:
FIM-20261022065034-622
Location:Italy
Prices list
1 - 32 pcsUSD 2213.08 /pc
Product Details
Product Details
Efficiency98.4% (Maximum)
IP RangeIP65
MPPT max850 V (at rated AC power)
MPPT min460 V (at rated AC power)
Max Input Current2 × 26 A (26 A per MPPT)
Max Input Voltage1100 V DC
No. of PV strings per MPPT2
No. of independent MPPT inputs2
PhaseThree Phase
Power20 kW
TypeOn Grid (Grid-Tie)
Product Measurements
Product Measurements
Height675 mm
Width591.8 mm
Depth227.5 mm
Weight50 kg
The FIMER PVS-20-TL-SX is a 20 kW three-phase on-grid string inverter designed for commercial and industrial solar installations, including commercial rooftops and carports.
It provides two independent MPPT trackers, an MPPT operating window of 460–850 V at rated AC power and a maximum DC input voltage of 1100 V. Maximum conversion efficiency is 98.4%.
The inverter features a transformerless, fuse-free design with individual string monitoring, embedded communications and export-limitation functionality. Optional PID recovery and arc-fault protection are available for the SX version.
The IP65 enclosure supports forced-air cooling and offers compact mounting options. CE and RCM markings and IEC/EN 62109 safety standards are listed.
Total (Tax Excluded)USD 2213.08
Price (per piece):USD 2213.08
Available now:32 pcs
* Please choose address and incoterm for checkout
Lead Time1 Week(s)
