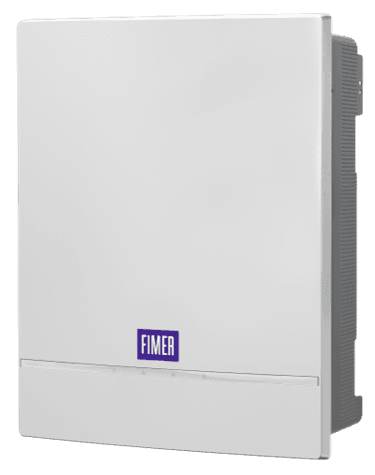

FIMER PVS-10-TL 10kW Three Phase On Grid Inverter - PVS-10-TL-SX
SKU Code:
FIM-20261022065034-108
Location:Italy
Prices list
1 - 15 pcsUSD 1461.56 /pc
Product Details
Product Details
Efficiency98.4% (Maximum)
IP RangeIP65
MPPT max850 V (at rated AC power)
MPPT min460 V (at rated AC power)
Max Input Current17 A per MPPT
Max Input Voltage1100 V DC
No. of PV strings per MPPT2
No. of independent MPPT inputs2
PhaseThree Phase
Power10 kW
TypeOn Grid (Grid-Tie)
Product Measurements
Product Measurements
Height568.2 mm
Width473.6 mm
Depth207 mm
Weight29.6 kg
The FIMER PVS-10-TL-SX is a 10 kW three-phase grid-connected string inverter designed for commercial and industrial photovoltaic installations.
It features two independent MPPT trackers, a maximum DC input voltage of 1100 V and an MPPT voltage range of 460–850 V at rated AC power. Maximum inverter efficiency reaches 98.4%.
The inverter supports PV string monitoring, integrated export limitation and communication through Ethernet, WLAN and RS-485. Its fuse-free design simplifies installation and maintenance.
The IP65-rated enclosure uses natural cooling and carries CE and RCM markings, with IEC/EN 62109 safety standards listed. Warranty duration is not specified.
Total (Tax Excluded)USD 1461.56
Price (per piece):USD 1461.56
Available now:15 pcs
* Please choose address and incoterm for checkout
Lead Time1 Week(s)
