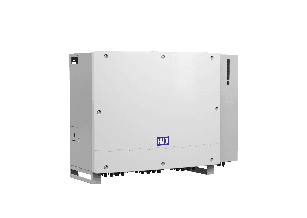

FIMER PVM-75-TL 75kW Three Phase On Grid Inverter - PVM-75-TL-SX
SKU Code:
FIM-20261022065034-895
Location:Italy
Prices list
1 - 5 pcsUSD 5051.17 /pc
Product Details
Product Details
Efficiency98.8% (Maximum)
IP RangeIP66 Power / IP65 Wiring Box
MPPT max850 V (at rated AC power)
MPPT min460 V (at rated AC power)
Max Input Current32 A per MPPT
Max Input Voltage1100 V DC
No. of PV strings per MPPT2
No. of independent MPPT inputs6
PhaseThree Phase
Power75 kW
TypeOn Grid (Grid-Tie)
Product Measurements
Product Measurements
Height700 mm
Width950 mm
Depth350 mm
Weight83 kg
The FIMER PVM-75-TL-SX is a 75 kW three-phase grid-connected solar string inverter designed for commercial and industrial photovoltaic installations.
The inverter features six independent MPPT trackers, two PV string connections per MPPT and an operating window of 460–850 V at rated AC power. Maximum efficiency reaches 98.8%.
Its transformerless design incorporates arc-fault detection, string monitoring, integrated export limitation and communication through dual Ethernet, WLAN and RS-485 interfaces.
The inverter features IP66 protection for the power compartment and IP65 protection for the wiring box. It carries CE and RCM markings and lists IEC/EN 62109 safety standards.
Total (Tax Excluded)USD 5051.17
Price (per piece):USD 5051.17
Available now:5 pcs
* Please choose address and incoterm for checkout
Lead Time1 Week(s)
