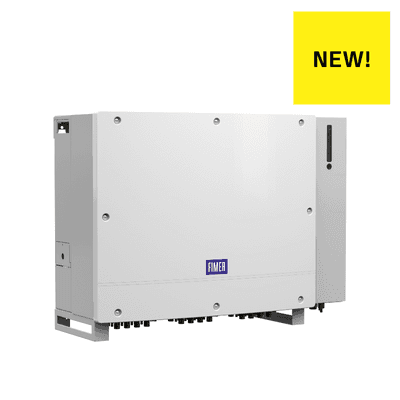

FIMER PVM-125-TL-SX 125kW Three Phase On-Grid Inverter
SKU Code:
FIM-20261022065034-851
Location:Italy
Prices list
1 - 10 pcsUSD 5462.80 /pc
Product Details
Product Details
Efficiency98.8%
IP RangeIP66 (power compartment) / IP65 (wiring box)
MPPT max850 V
MPPT min460 V
Max Input Current32 A per MPPT
Max Input Voltage1100 V
No. of PV strings per MPPT2
No. of independent MPPT inputs12
PhaseThree Phase
Power125 kW
TypeOn Grid (Grid-Tie)
Product Measurements
Product Measurements
Height700 mm
Width950 mm
Depth350 mm
Weight93 kg
The FIMER PVM-125-TL-SX is a 125kW three-phase grid-tie inverter, the largest in the PVM range, for utility-scale solar plants.
Twelve quick-connect MPPTs operate across a 200–1000V input range, with a 460–850V full-power window, 32A per MPPT and 1100V absolute maximum — exceptional tracking granularity for arrays split across many orientations. Maximum efficiency 98.8%, Euro efficiency 98.5%.
Individual string current monitoring pinpoints underperforming strings without a site inspection. IP66 power compartment with IP65 wiring box. RS485 and RJ45 Ethernet with integrated data logger.
Total (Tax Excluded)USD 5462.80
Price (per piece):USD 5462.80
Available now:10 pcs
* Please choose address and incoterm for checkout
Lead Time1 Week(s)
