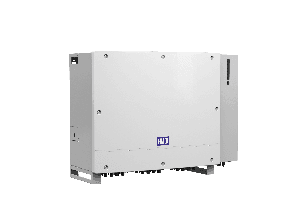

FIMER PVM-100-TL 100kW Three Phase On Grid Inverter - PVM-100-TL-SX
SKU Code:
FIM-20261022065034-785
Location:Italy
Prices list
1 - 10 pcsUSD 5203.17 /pc
Product Details
Product Details
Efficiency98.8% (Maximum)
IP RangeIP66 Power / IP65 Wiring Box
MPPT max850 V (at rated AC power)
MPPT min460 V (at rated AC power)
Max Input Current32 A per MPPT
Max Input Voltage1100 V DC
No. of PV strings per MPPT2
No. of independent MPPT inputs8
PhaseThree Phase
Power100 kW
TypeOn Grid (Grid-Tie)
Product Measurements
Product Measurements
Height700 mm
Width950 mm
Depth350 mm
Weight87 kg
The FIMER PVM-100-TL-SX is a 100 kW three-phase on-grid string inverter designed for commercial and industrial photovoltaic power systems.
It incorporates eight independent MPPT trackers, two PV input pairs per MPPT and an operating voltage window of 460–850 V at rated AC power. The inverter delivers maximum efficiency of 98.8%.
The unit features integrated arc-fault detection, individual string monitoring and export-limitation control. Dual Ethernet, WLAN and RS-485 interfaces support communication and remote monitoring.
The enclosure offers IP66 protection for its power compartment and IP65 protection for the wiring box, with forced-air cooling. CE and RCM markings and IEC/EN 62109 safety standards are listed.
Total (Tax Excluded)USD 5203.17
Price (per piece):USD 5203.17
Available now:10 pcs
* Please choose address and incoterm for checkout
Lead Time1 Week(s)
