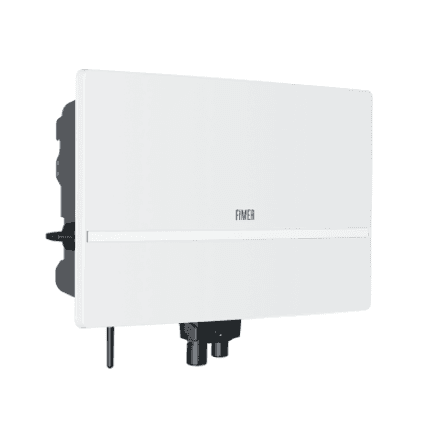

FIMER PowerTRIO 7.5kW Three Phase Hybrid Inverter - FIM-HY-7.5-SE-A-3PH
SKU Code:
FIM-20261020060055-939
Location:Italy
Prices list
1 - 8 pcsUSD 1711.26 /pc
Product Details
Product Details
Efficiency97.9%
IP RangeIP65
MPPT max850 V
MPPT min250 V
Max Input Current32 A (16 A / 16 A)
Max Input Voltage1000 V
No. of PV strings per MPPT1
No. of independent MPPT inputs2
PhaseThree Phase
Power7.5 kW
TypeHybrid (Battery-ready)
Product Measurements
Product Measurements
Height373 mm
Width518 mm
Depth183 mm
Weight18 kg
The FIMER PowerTRIO 7.5 is a 7.5kW three-phase hybrid inverter for residential and small commercial solar with battery storage.
Two independent MPPTs track 250–850V at 32A total (16A each), with 1000V maximum DC input. Maximum efficiency 97.9%. Battery charging reaches 10256W from the DC side.
Three-phase output at 320/480V delivers 7500VA, with up to 2500VA available single-phase. Battery-ready with DC or AC coupling and MC4-Evo stor connector. IP65 enclosure. Wi-Fi and LAN datalogger built in, plus RS485, DRM0/5 and a load-management relay.
Total (Tax Excluded)USD 1711.26
Price (per piece):USD 1711.26
Available now:8 pcs
* Please choose address and incoterm for checkout
Lead Time1 Week(s)
