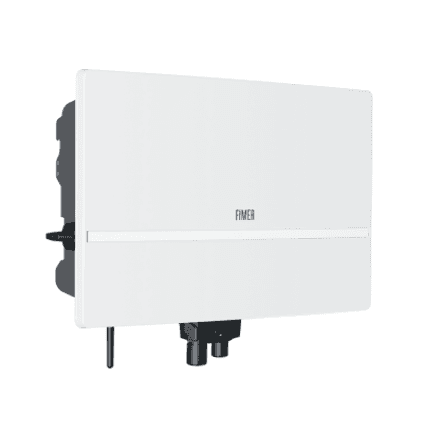

FIMER PowerTRIO 10kW Three Phase Hybrid Inverter - FIM-HY-10.0-SE-A-3PH
SKU Code:
FIM-20261020060055-540
Location:Italy
Prices list
1 - 25 pcsUSD 1945.77 /pc
Product Details
Product Details
Efficiency98.3%
IP RangeIP65
MPPT max850 V
MPPT min330 V
Max Input Current32 A (16 A / 16 A)
Max Input Voltage1000 V
No. of PV strings per MPPT1
No. of independent MPPT inputs2
PhaseThree Phase
Power10 kW
TypeHybrid (Battery-ready)
Product Measurements
Product Measurements
Height373 mm
Width518 mm
Depth183 mm
Weight18 kg
The FIMER PowerTRIO 10.0 is a 10kW three-phase hybrid inverter, the largest in the PowerTRIO range, for residential and commercial solar with battery storage.
Two independent MPPTs track 330–850V at 32A total (16A each), with 1000V maximum DC input. Maximum efficiency 98.3% — the highest in the series. Battery charging reaches 10256W from the DC side.
Three-phase output at 320/480V delivers 10000VA, with up to 3333VA available single-phase. Battery-ready with DC or AC coupling and MC4-Evo stor connector. IP65 enclosure. Wi-Fi and LAN datalogger built in, plus RS485, DRM0/5 and a load-management relay.
Total (Tax Excluded)USD 1945.77
Price (per piece):USD 1945.77
Available now:25 pcs
* Please choose address and incoterm for checkout
Lead Time1 Week(s)
