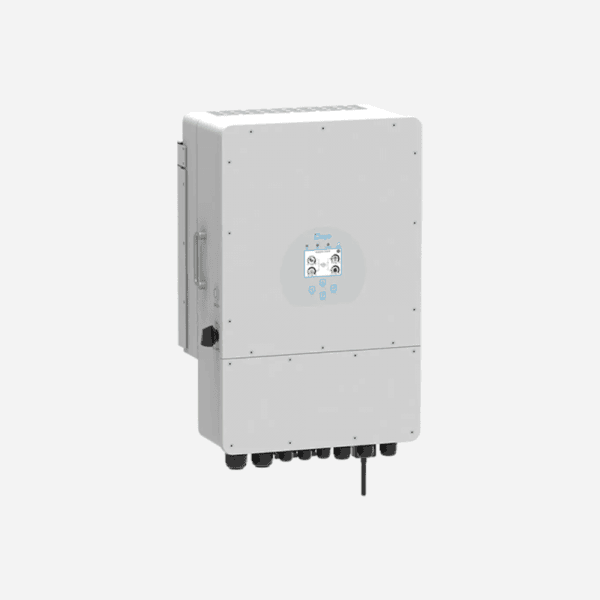

Deye 10KW 3P Hybrid Inverter (SUN-10K-SG04LP3-EU)

Deye 10KW 3P Hybrid Inverter, battery 48V, SUN-10K-SG04LP3-EU; Recommended Max PV input Power - 13KW; Nominal AC power (@230/400Vac, 50Hz) 10KW; Nominal AC Voltage 3L/N/PE 220/380, 230/400Vac; No. of MPPTs - 2 no's; No. of PV strings per MPPT 2+1 no's; Max PV input voltage 800V; Max efficiency 97.60%; Communication - WIFI; Output Over Voltage Protection DC Type II/AC Type III; Grid Regulation CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699, C10-11; Safety EMC / Standard - IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2; Features - 100% unbalanced output, each phase; Max. output up to 50% rated power, DC couple and AC couple to retrofit existing solar system, Max. 16pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel, Max. charging/discharging current of 240A, 48V low voltage battery, transformer isolation design, 6 time periods for battery charging/discharging, Support storing energy from diesel generator
